Pole-Mounted Transformer for Rural Electrification: XIAOWEI's Single Phase Solutions for Canada and US

Nantong, Jiangsu Sep 21, 2026 (Issuewire.com) - Rural electrification grid expansion across remote North American territories requires overhead pole-mounted distribution transformers engineered for extreme severe-weather resilience, high thermal overload capacity, and minimal life-cycle core losses. Installing a high-efficiency single-phase pole-mounted transformer for rural electrification engineered by Jiangsu Xiaowei Electric Co., Ltd. (XIAOWEI) ensures stable, low-voltage power delivery for agricultural irrigation facilities, rural residential communities, livestock operations, and remote industrial loads operating along extended overhead distribution feeder lines.

Selecting single-phase pole-mounted transformers for Canadian and U.S. rural utility networks requires evaluating mounting mechanical stability, dielectric fluid insulation chemistry, overvoltage surge protection, and severe-weather anti-corrosion endurance. Specialized transformer engineering by XIAOWEI provides electric co-operatives and municipal utilities with four primary engineering selection parameters:

Mechanical Tank Integrity and Heavy-Duty Overhead Mounting Support: Constructing hermetically sealed steel tanks, pressure relief valves, and hot-dip galvanized mounting channels under ANSI/IEEE C57.12.20 to endure ice loading and severe wind shear.

FR3 and Mineral Oil Dielectric Chemistry with High Thermal Capacity: Utilizing biodegradable natural ester FR3 fluid or refined mineral oil to maintain low-pour-point fluid circulation down to sub-zero temperatures of -40°C.

Low-Loss Silicon Steel Core Metallurgy Exceeding DOE and CSA Efficiency: Employing 45-degree mitered grain-oriented cold-rolled steel cores and 100% copper windings to minimize excitation losses across remote feeder lines.

Surge Arrester Protection and Severe Weather Insulation Systems: Integrating tank-mounted metal-oxide surge arresters, high-grade porcelain bushings, and dual-voltage primary tap changers for grid flexibility.

Layer 1: Structural Tank Engineering and Overhead Pole Mounting Security

Overhead pole-mounted transformers installed along rural utility corridors experience continuous exposure to high wind forces, heavy winter ice accumulation, and extreme seasonal thermal cycling. XIAOWEI manufactures single-phase pole-mounted transformers using heavy-gauge cold-rolled steel tanks engineered with circular sewing tank covers for even stress distribution, continuous automated submerged arc weld seams, and reinforced top cover rims under ANSI/IEEE C57.12.20 mechanical standards. The tank structure features heavy-duty mounting channels and ANSI-compliant suspension hooks welded directly to the main cylindrical shell, distributing mechanical load stresses evenly across wooden, steel, or concrete utility poles.

To prevent internal pressure buildup during sudden thermal overloads, every transformer tank includes an automatic, self-sealing pressure relief valve designed to vent internal gas pressure before resealing tightly. All external hardware, mounting lugs, tin-plated ring bolt ground terminals, and cover clamping bands undergo hot-dip galvanizing or stainless steel fabrication. The outer steel surface receives a multi-stage chemical pretreatment followed by an electrostatic powder coating engineered to meet or exceed IEEE C57 standards for UV, salt spray, and weather resistance. CSA-compliant dual lifting lugs welded to the upper rim facilitate safe overhead rigging, ensuring structural stability under severe Canadian ice storms and high U.S. Midwest wind shear.

Layer 2: Dielectric Fluid Performance and Sub-Zero Weather Endurance

Dielectric fluid within single-phase pole-mounted transformers serves as both an electrical insulating medium and a primary thermal heat transfer agent. XIAOWEI supplies single-phase pole-mounted transformers filled with high-grade refined mineral oil complying with IEC 60296 or environmentally friendly FR3 natural ester vegetable oil. Refined mineral oil maintains an exceptionally low pour point below -40°C, ensuring rapid convective fluid circulation, internal heat dissipation, and dielectric reliability during harsh Canadian sub-zero winter storms.

For environmentally sensitive agricultural zones, forested distribution corridors, and watershed protection areas, biodegradable FR3 natural ester fluid provides a fire point exceeding 300°C and a flash point above 275°C. FR3 fluid delivers self-extinguishing thermal protection, preventing transformer oil fires in the event of secondary grid short circuits or direct lightning strikes. Both dielectric fluid options preserve cellulose paper insulation integrity under thermal stress, allowing the transformer to sustain peak seasonal overload demand while maintaining a rated average winding temperature rise of 55°C or lower and a hot-spot temperature rise of 65°C or lower.

Layer 3: Precision Core Metallurgy and Energy Efficiency Standards

In long-distance rural distribution feeders, transformer excitation losses occur continuously 24 hours a day, regardless of customer load demand. XIAOWEI constructs single-phase pole-mounted transformer cores using high-permeability grain-oriented cold-rolled silicon steel laminations assembled with 45-degree full miter joints and a lapless top yoke design. This advanced core geometry eliminates high-reluctance magnetic joints and reduces excitation current, significantly lowering no-load losses and reducing acoustic magnetostrictive noise emissions in rural residential environments.

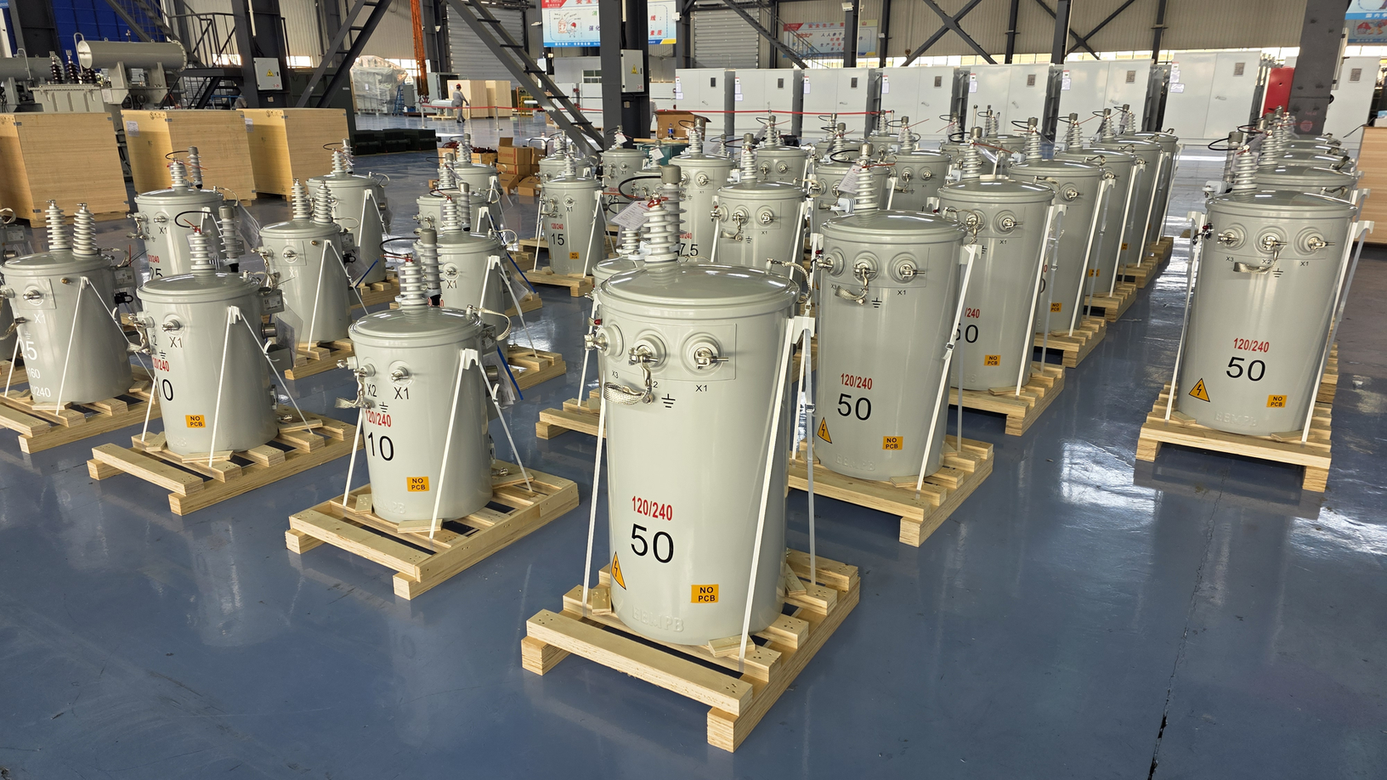

Primary and secondary windings are wound from 100% high-conductivity copper conductor wire supplied by certified metallurgical vendors, providing superior mechanical strength against short-circuit electromagnetic forces. Available in standard single-phase ratings from 10kVA to 250kVA (such as the widely deployed 37.5kVA unit operating at 19.92kV), XIAOWEI single-phase pole-mounted transformers exceed Department of Energy (DOE 2016) and CSA C2.1/C2.2 energy efficiency benchmarks, lowering long-term operating expenses for utility co-operatives.

Layer 4: Overvoltage Surge Protection and Dual-Voltage Adaptability

Overhead rural distribution lines stretching across open terrain and forest corridors are highly vulnerable to direct lightning strikes, atmospheric switching surges, and severe temporary overvoltage events. XIAOWEI equips single-phase pole-mounted distribution transformers with heavy-duty tank-mounted metal-oxide surge arresters installed directly adjacent to high-voltage primary bushings. For Completely Self-Protected (CSP) model configurations, units integrate internal current-limiting fuses and secondary circuit breakers to provide complete self-protection against lightning impulses, grid short circuits, and downstream fault propagation.

High-voltage primary bushings are constructed from wet-process porcelain, while low-voltage bushings utilize polymeric or porcelain spade and clip-type terminals with extended creepage distances to prevent surface electrical flashover under heavy frost or coastal salt spray. In addition, XIAOWEI offers external dual-voltage primary tap changers (such as 14.4kV x 7.2kV), allowing utility crews to reconfigure transformer primary voltage ratings in the field as rural distribution feeder lines are upgraded to higher operating voltages.

Layer 5: Single-Line Specialization Advantage of Factory-Direct Supply

Sourcing single-phase pole-mounted transformers directly from a specialized factory manufacturer ensures that rural electric co-operatives, agricultural enterprises, and municipal utilities receive 100% copper windings, certified silicon core metallurgy, ANSI/IEEE compliance, and full factory test documentation, accelerating grid installation approval compared to purchasing uncertified transformers through trading intermediaries where thin tank steel, skipped phosphating steps, and unverified oil chemistry introduce oil leaks, tank rust, and early winding burnout hazards. This direct factory engineering model provides utility managers with transparent technical support, flexible voltage ratio customization, factory-installed surge arresters, custom terminal pad arrangements, and dependable delivery schedules.

Layer 6: Conclusion and Overhead Transformer Sourcing Portal

Selecting high-reliability single-phase pole-mounted transformers for rural electrification projects across Canada and the United States requires balancing mechanical mounting safety, severe-weather dielectric fluid performance, low core losses, and overvoltage surge protection. By manufacturing high-efficiency pole-mounted transformers backed by 20 years of specialized manufacturing experience, ISO quality management, and full compliance with ANSI, IEEE, CSA, and IEC standards, XIAOWEI supports resilient rural power delivery across global distribution networks.

To request single-phase pole-mounted transformer CAD dimensional drawings, outline schematics, type test reports, or custom volume price quotations for North American utility projects, visit the official company portal: https://www.xiaoweipower.com. For direct technical engineering consultations, short-circuit withstand calculation data, dual-voltage tapping configurations, and voltage ratio customization inquiries, contact the technical sales department.
