Pad-Mounted Transformer Manufacturer: XIAOWEI's Three-Phase Enclosed Solutions for North America

Nantong, Jiangsu Sep 21, 2026 (Issuewire.com) - Ensuring continuous public safety and grid stability across North American underground power distribution depends directly on tamper-resistant surface transformer architecture. Ground-level pad-mounted installations position high-voltage electrical equipment in close proximity to pedestrian traffic and harsh weather, requiring heavy-gauge steel enclosures that block physical tampering while managing internal thermal stresses under peak loading. Integrating a heavy-duty three-phase pad-mounted transformer for North America engineered by Jiangsu Xiaowei Electric Co., Ltd. (XIAOWEI), delivers full ANSI/IEEE grid compliance, high-dielectric FR3 fluid insulation, and dead-front compartment security for demanding commercial and utility power networks

Evaluating three-phase pad-mounted transformers for commercial and industrial grid interconnections requires examining cabinet enclosure security, fluid insulation chemistry, core loss metallurgy, and full-scale factory certification testing. XIAOWEI highlights four critical engineering evaluation parameters when selecting pad-mounted transformers for North American utility projects:

Compartmentalized Tamper-Resistant Enclosure Design: Incorporating dead-front high-voltage elbow bushings, baffled cabinet seams, and penta-head locking mechanisms under ANSI/IEEE C57.12.28.

FR3 Biodegradable Fluid Insulation and Fire Defense: Utilizing natural ester vegetable oil with a fire point exceeding 300°C for self-extinguishing safety, environmental spill mitigation, and high thermal capacity.

High-Permeability Core Metallurgy and DOE Efficiency Compliance: Employing 45-degree mitered grain-oriented cold-rolled silicon steel cores and 100% copper windings to achieve peak operating efficiency of 99.16%.

North American Grid Certification and Third-Party Type Testing: Verifying UL and CSA safety compliance alongside KEMA 63000 and Suzhou Electrical Apparatus Science Research Institute (EATL) impulse and thermal test validation.

Layer 1: Structural Engineering and Tamper-Resistant Cabinet Design

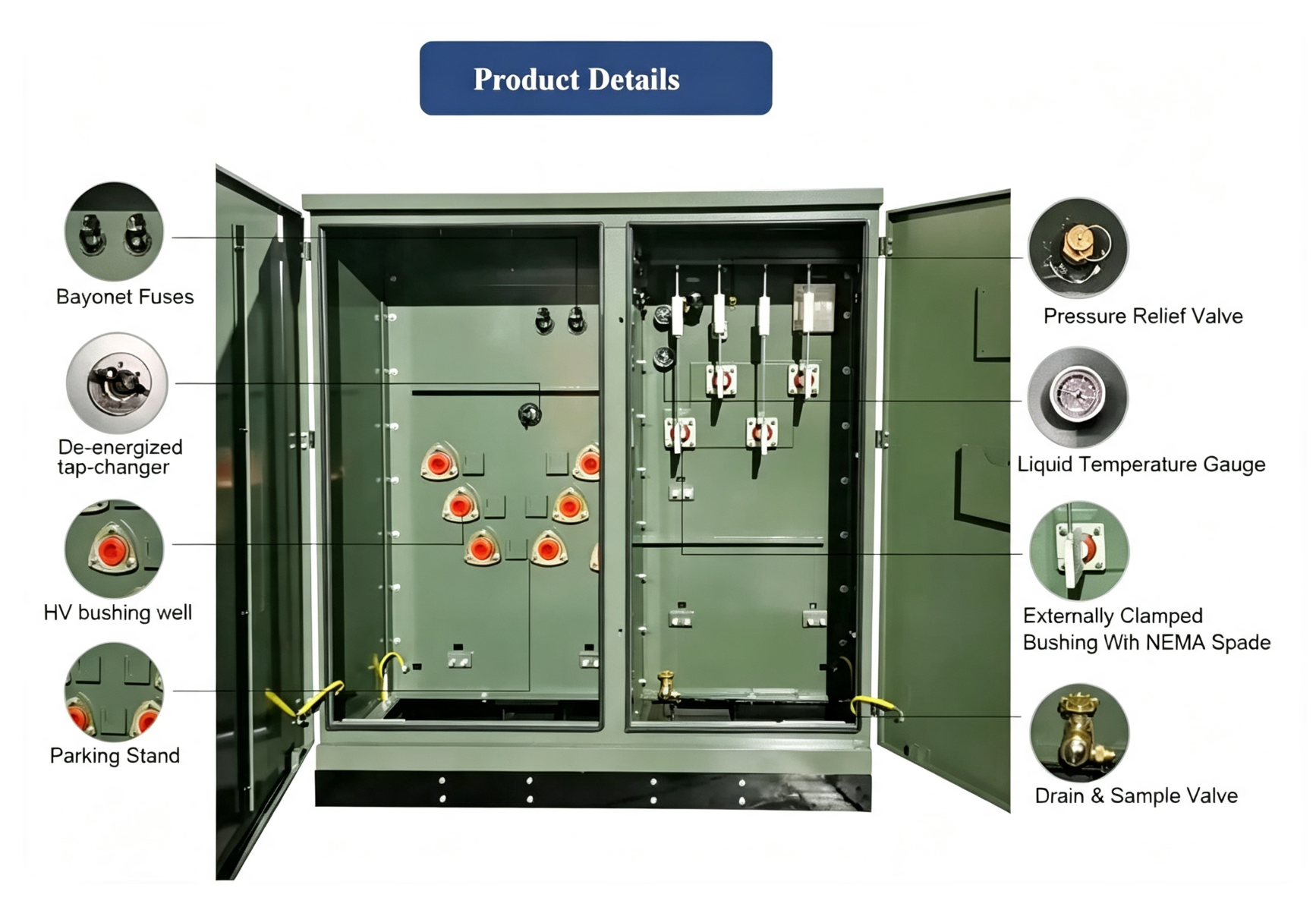

Pad-mounted transformers installed on ground-level concrete pads across suburban residential developments, electric utility distribution pads, commercial parking structures, and outdoor industrial staging areas require robust steel cabinet enclosures to prevent unauthorized physical entry and accidental high-voltage electrical contact. XIAOWEI constructs three-phase pad-mounted transformer enclosures using heavy-gauge cold-rolled structural steel cabinets featuring compact, space-efficient profiles, weather-resistant materials optimized for long-term UV exposure, recessed doors, internal cabinet baffles, welded lifting lugs, and continuous leak-proof weld seams under ANSI/IEEE C57.12.28 tamper-resistance security standards. The compartmentalized cabinet structure divides high-voltage primary and low-voltage secondary termination chambers into isolated compartments, effectively preventing arc flash propagation, dust accumulation, and physical tampering.

High-voltage compartments feature dead-front construction with insulated 200A loadbreak or 600A deadbreak elbow bushings, protecting field maintenance technicians during routine switching operations. The outer cabinet door utilizes a two-point latching mechanism coupled with a penta-head security bolt and padlock security shroud. This multi-barrier locking structure prevents prying, wire insertion, physical impacts, and severe weather ingress, ensuring safe surface installation across dense urban commercial zones, suburban load centers, and outdoor industrial facilities.

Layer 2: Dielectric Fluid Insulation and FR3 Fire Safety Performance

Liquid-immersed pad-mounted transformers rely on dielectric fluid to dissipate thermal energy from core and winding assemblies while maintaining electrical insulation between phase conductors. XIAOWEI offers three-phase pad-mounted transformers filled with biodegradable FR3 natural ester vegetable oil, which exhibits a fire point exceeding 300°C and a flash point above 275°C. Compared to conventional mineral oil with a fire point of approximately 160°C, FR3 fluid provides self-extinguishing thermal protection, significantly reducing fire risk in densely populated commercial centers and indoor-adjacent pads.

In addition, FR3 ester fluid is non-toxic and fully biodegradable, eliminating costly environmental soil remediation measures in the event of an accidental liquid spill. The thermal oxidation stability of FR3 fluid preserves paper insulation integrity, extending transformer service life under continuous ONAN self-cooling operation. For standard applications, high-grade refined mineral oil complying with IEC 60296 is also available, providing reliable dielectric performance across sub-zero northern winter temperatures and high-ambient summer loads.

Layer 3: Core Metallurgy, Copper Windings, and DOE Efficiency Standards

Transformer energy efficiency directly influences utility operating expense over a 30-year commercial service life. XIAOWEI manufactures three-phase pad-mounted transformers using high-permeability grain-oriented cold-rolled silicon steel sheets engineered with 45-degree full miter joints and a precision lapless top yoke assembly. This advanced core construction minimizes magnetic domain resistance and excitation current, significantly reducing no-load core losses and ensuring quiet magnetic operation in noise-sensitive commercial environments.

Primary and secondary windings are constructed from 100% high-conductivity copper conductor wire supplied by certified metallurgical vendors. Configured in Dyn11 or Ynyn0 connection vector groups, copper windings provide superior mechanical strength against short-circuit electromagnetic forces during grid disturbances. The optimized core-and-coil geometry yields a peak operating efficiency of 99.16% at 50% load on 150kVA models, exceeding Department of Energy (DOE) and CSA energy efficiency standards while maintaining a rated temperature rise of 55°C or lower.

Layer 4: Type Testing Rigor and 10-Year Zero Fault Track Record

Verifying heavy electrical equipment reliability before field deployment requires complete factory acceptance testing and third-party laboratory verification. Every three-phase pad-mounted transformer manufactured by XIAOWEI, ranging from 150kVA standard commercial units up to 5000kVA industrial pad mounts operating at primary voltages up to 35kV, undergoes full routine test protocols prior to shipment, including winding resistance measurement, voltage ratio verification, phase displacement checks, load loss measurement, and dielectric withstand testing.

Independent type testing conducted by KEMA 63000, TÜV Rheinland, SGS, and the Suzhou Electrical Apparatus Science Research Institute (EATL) validates XIAOWEI transformer performance under extreme grid stress. In EATL 5000kVA type testing (S-5000/13.8), top oil temperature rise reached 40.3K against the standard limit of 60K or lower, while winding temperature rise measured 44.4K to 46.6K against the 65K limit, demonstrating exceptional thermal margin. In addition, lightning impulse withstand testing at 95kV full-wave and 105kV chopped-wave high-voltage terminal impulse levels achieved zero electrical breakdown, supporting XIAOWEI's track record of maintaining 0 fault rate for more than 10 years across global distribution projects.

Layer 5: Single-Line Specialization Advantage of Factory-Direct Transformer Supply

Sourcing three-phase pad-mounted transformers directly from a specialized factory manufacturer ensures that utility engineers and commercial contractors receive 100% copper windings, certified core steel metallurgy, UL and CSA safety compliance, and factory acceptance test documentation, accelerating project interconnection approval compared to purchasing uncertified units through trading intermediaries where thin cabinet steel, skipped phosphating steps, and unverified winding materials introduce cabinet rust, dielectric breakdown, and transformer failure hazards. This direct factory engineering model provides grid operators with transparent technical support, flexible primary voltage tapping, custom bushing arrangements, specialized K-factor harmonic mitigation design, customized protective relaying, and dependable delivery schedules.

Layer 6: Conclusion and North American Transformer Sourcing Portal

Specifying three-phase pad-mounted transformers for North American underground power distribution requires uniting tamper-resistant cabinet security, high dielectric fluid performance, low core losses, and strict ANSI/IEEE compliance. By delivering fully customizable ZGS-H series pad-mounted transformers backed by 20 years of transformer engineering expertise, ISO quality management, and UL/CSA certification, XIAOWEI supports reliable commercial and industrial electrification across global energy networks.

To request pad-mounted transformer CAD dimensional drawings, electrical schematic diagrams, engineering test reports, or custom volume price quotations for North American utility projects, visit the official company portal: https://www.xiaoweipower.com. For direct technical engineering consultations, short-circuit calculation data, and custom voltage design inquiries, contact the technical sales department.
